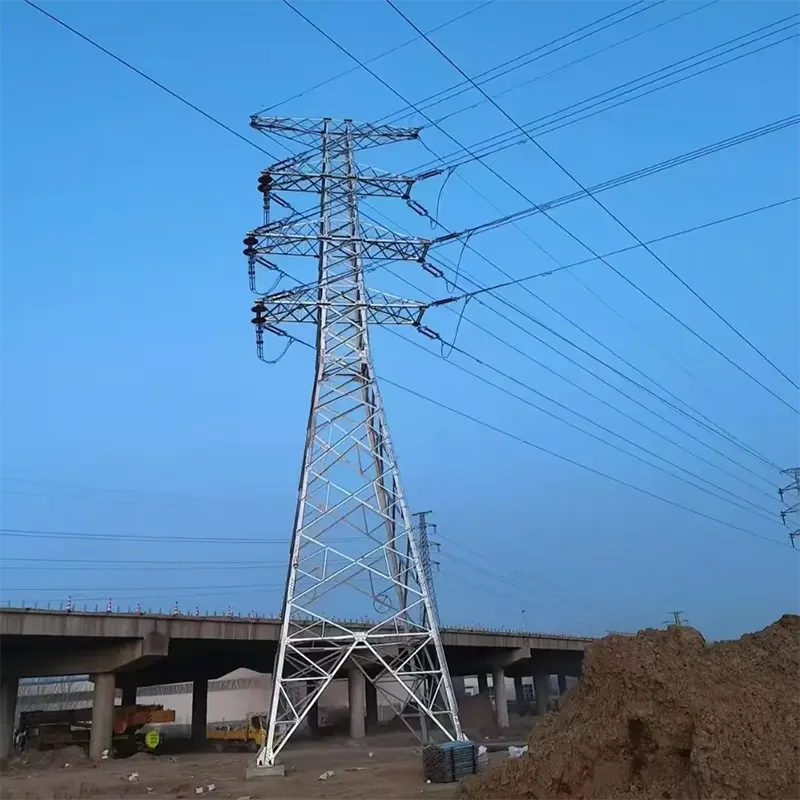

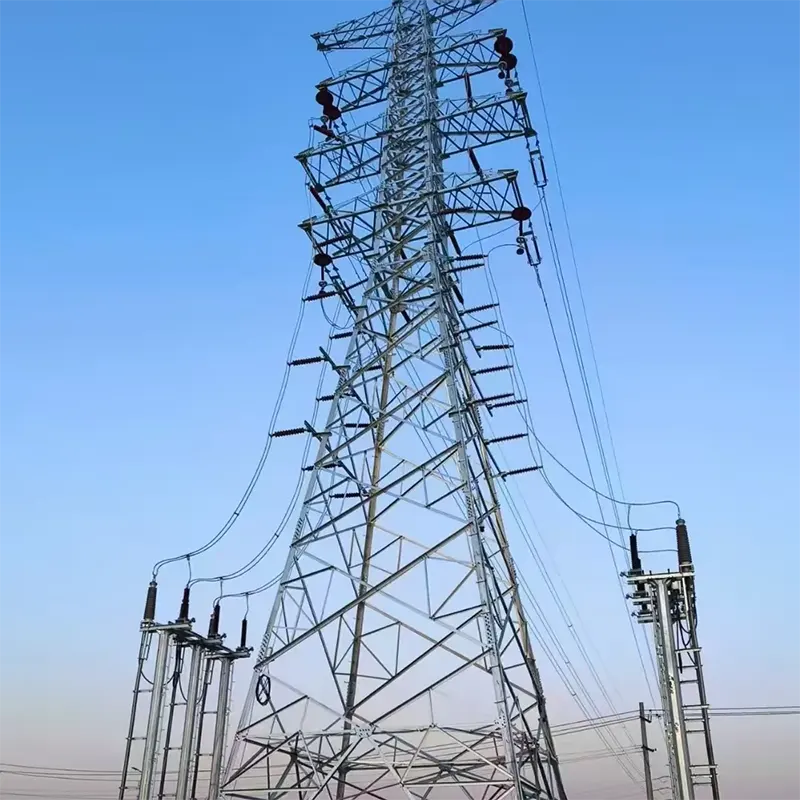

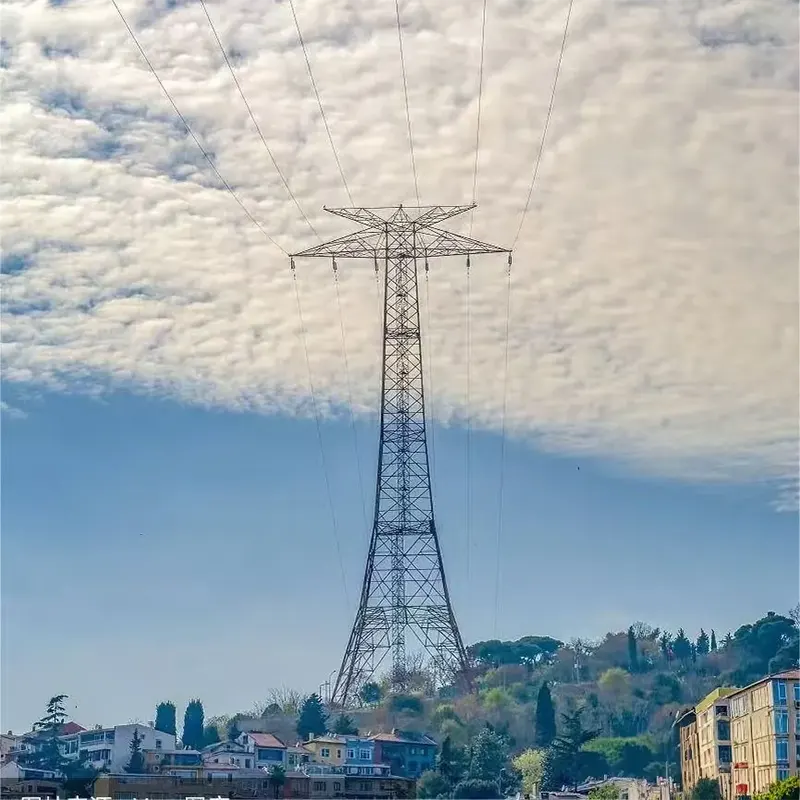

Weather Resistant Galvanized Angle Steel Tower

The weather resistant galvanized angle steel tower is a conventional angle steel lattice tower — the classic workhorse of transmission lines worldwide — with one upgrade that changes everything: complete hot-dip galvanizing. Every member, bolt, and fitting is coated with metallic zinc, creating a barrier that stops rust before it starts.

Steel wants to corrode. In humid coastal air, in industrial atmospheres with sulfur compounds, in the tropics — unprotected steel loses 0.1–1 mm of thickness per year. A tower that should last 50 years can show serious section loss in 10–15 years without protection. Galvanizing flips that math: the zinc layer corrodes preferentially (sacrificial protection), and where it does erode, it forms a protective zinc-oxide patina that slows further attack. The tower effectively "wears armor" for half a century.

Structure and Materials of Weather Resistant Galvanized Angle Steel Tower

The tower uses the same proven lattice geometry as standard angle steel towers: four main legs of angle steel, cross-braced in X or K patterns, with cross-arms for conductor support. What makes it "weather resistant" is the material specification and coating system:

Leg steel: Q355 / Q420 high-strength low-alloy angle, chosen for corrosion margin

Galvanizing: hot-dip per ISO 1461 / GB/T 2694, 85 µm minimum (110–120 µm for coastal)

Coating edge cases: edges and bolt holes receive the same zinc coverage as flat surfaces

Hardware: all bolts, nuts, and washers galvanized to the same standard

Repair coating: two-component zinc-rich paint included for site touch-up after erection

Optional: weathering steel (Corten) legs for maximum long-term economics in severe zones

Hot-dip galvanizing protects in two ways. First, it seals the steel from oxygen and moisture. Second — and this is the clever part — if the coating is scratched down to bare steel, the surrounding zinc corrodes instead of the steel, "sacrificing" itself to protect the scratch. No other coating system offers this self-healing protection at this cost.

Key Features and Benefits

50+ Year Service Life, Documented

Per ISO 9223 atmospheric corrosivity classifications, an 85 µm galvanized coating delivers 50+ years in C2–C3 (rural/suburban) environments and 25–40 years in C4 (industrial/coastal). We provide corrosion-life calculations with each quotation — you will see the expected maintenance interval in writing before you buy.

Sacrificial Protection That Self-Heals

Scratched coating heals itself through cathodic protection: the zinc around the scratch corrodes preferentially and re-covers the exposed steel with zinc salts. Transport damage, site handling scrapes, and bolt tightening marks do not become rust initiation points.

Lowest Lifetime Cost of Ownership

Compare the alternatives: painting needs re-coating every 8–12 years, each time requiring surface prep and tower downtime. Galvanizing is a one-time treatment. Over 50 years, galvanizing typically costs 50–70% less than a paint maintenance program — and that is before counting the cost of line outages.

Suitable for Coastal and Industrial Zones

For sites within 3 km of the sea or near industrial emissions, we specify thicker 110–120 µm coatings plus corrosion allowances in member sizing. We have shipped weather resistant galvanized angle steel tower to island nations, tropical ports, and desert-industrial sites — the coating spec is matched to your actual environment.

Proven Lattice Strength, Zero Compromise

You lose none of the structural advantages of angle steel towers: high strength-to-weight, easy erection with standard crews, simple inspection, and low wind load. The weather resistance is an upgrade, not a trade-off.

Applications of Weather Resistant Galvanized Angle Steel Tower

As a weather resistant galvanized angle steel tower manufacturer and supplier, Maotong supplies these towers in bulk at factory-direct pricing for:

Transmission lines in coastal provinces, islands, and offshore-adjacent regions

Industrial corridors with aggressive atmospheric corrosivity

High-humidity tropical and subtropical networks

Utility distribution and sub-transmission lines requiring low-maintenance design

Long-term strategic corridors where line outages for maintenance are unacceptable

Renewable energy projects in harsh climates

Production Process

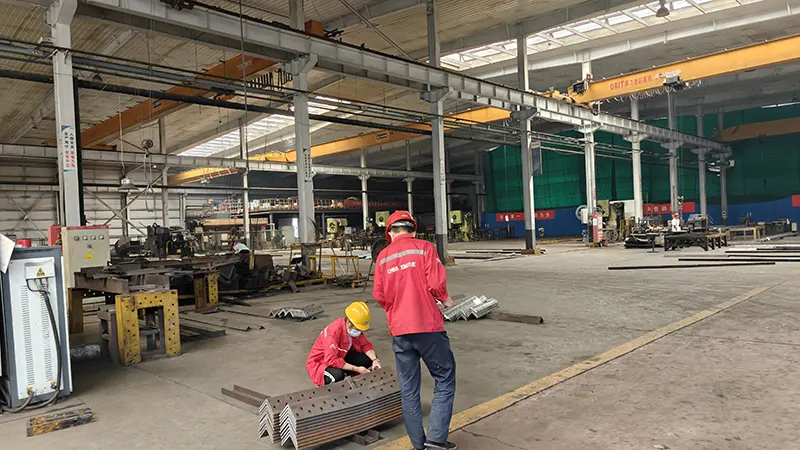

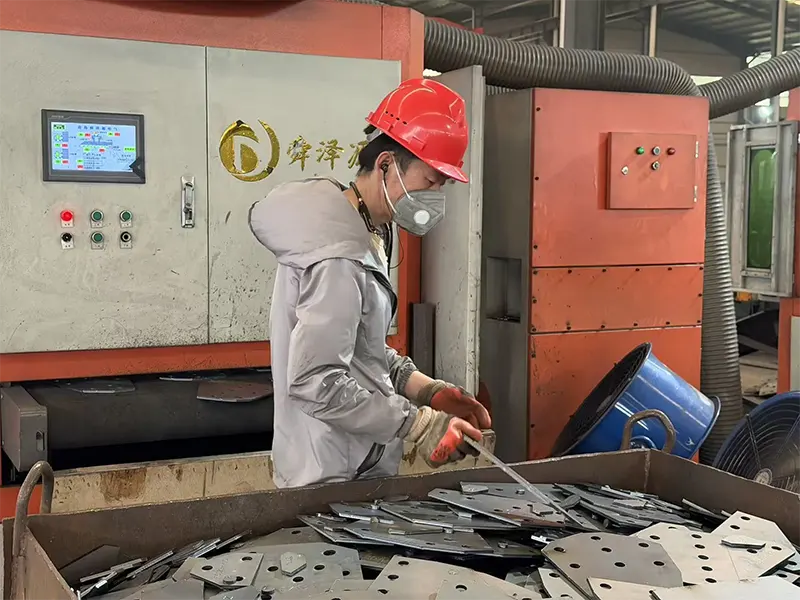

Fabrication follows the classic angle steel tower route: CNC cutting, precision hole punching, member tagging, and full trial assembly of each tower type before galvanizing. The galvanizing step is where this product differentiates itself.

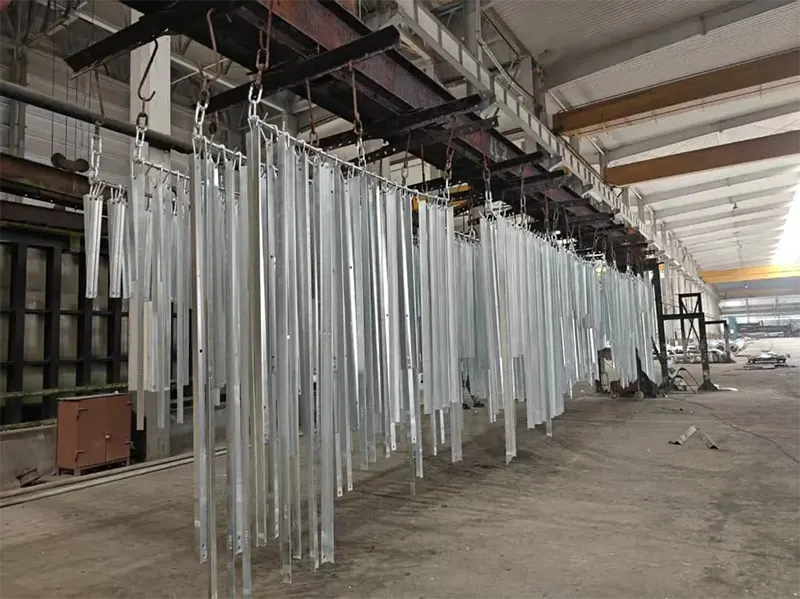

Our galvanizing line processes members through five stages: caustic degreasing to remove oils; hydrochloric acid pickling to strip mill scale; fluxing to prepare the steel surface; immersion in molten zinc at 445–455°C; and quenching/passivation. The result is a metallurgically bonded zinc-iron alloy layer — not a paint film — that cannot peel or blister.

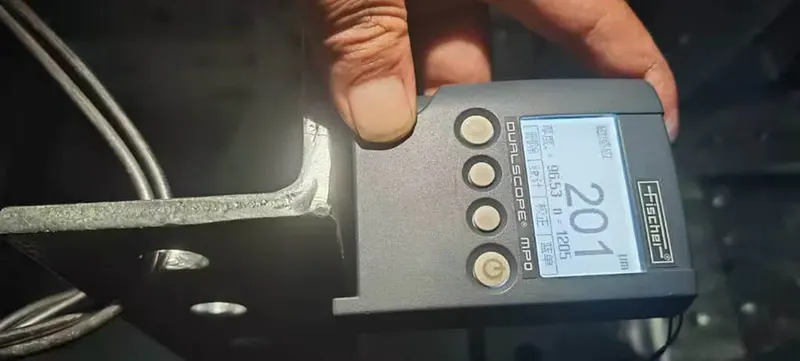

QC on the coating line: zinc thickness is measured with magnetic gauges at multiple points per member, coating adhesion is checked by hammer test, and any bare spots are repaired with zinc-rich paint per ISO 1461. Test reports accompany every shipment.

Product Specifications

Why Choose Us?

Maotong operates under the National Industrial Product Production License for 220kV transmission towers, plus 220kV and 500kV steel pipe tower quality certificates. Galvanized angle towers are weather resistant galvanized angle steel towers, not side business.

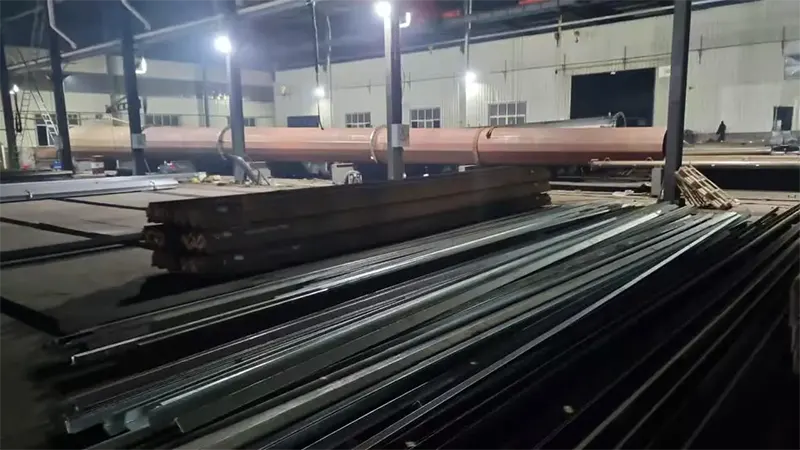

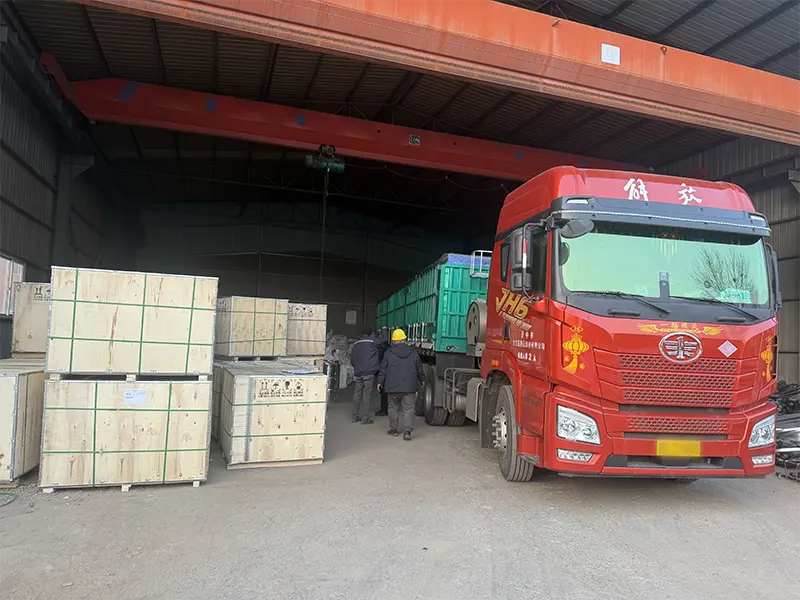

Galvanized members are bundled by assembly position, separated with wooden spacers to protect the zinc coating, and banded for sea freight. Touch-up paint and galvanizing repair compound are included in each shipment. Container or breakbulk loading at Qingdao Port.

FAQ

Q: How long does galvanizing actually last?

A: Per ISO 9223, an 85 µm coating gives 50+ years in C2–C3 environments, 25–40 years in C4. In severe C5 (industrial/marine) zones, we recommend 110–120 µm plus corrosion allowance in member sizing. We document the expected life in your quotation.

Q: What if the coating is damaged during transport or erection?

A: Minor scratches are self-healing through sacrificial zinc action. For deeper damage, we include zinc-rich repair paint with every shipment and provide touch-up instructions. It is a two-hour job on site.

Q: How does galvanizing compare in cost to painting?

A: Galvanizing costs more up front, but painting requires re-coating every 8–12 years, including surface preparation and tower access. Over a 50-year life, galvanizing is typically 50–70% cheaper in total cost.

Q: Can you supply towers for a specific voltage class?

A: Yes, from 66kV up to 500kV. We hold production licenses covering 220kV and quality certificates up to 500kV class. Provide your voltage, tower type, and loading data, and we will engineer and quote.

Q: What is your payment term and lead time?

A: 30% T/T deposit, balance before shipment (T/T or L/C at sight). Delivery around 20 working days for 30 sets after deposit confirmation. EXW, FOB, CFR, CIF Qingdao all available.
