500kV Voltage Lattice Steel Tower

High quality 500kV Voltage Lattice Steel Tower is offered by China manufacturer Maotong.

When it comes to ultra-high voltage (UHV) and extra-high voltage (EHV) power transmission, the structural integrity of the steel tower is the lifeline of the entire grid. The 500kV Voltage Lattice Steel Tower is engineered specifically for long-distance, high-capacity electrical transmission across challenging terrains. At Qingdao Maotong Power Equipment, we manufacture these critical infrastructure components with a clear focus on heavy load-bearing capacity, extreme weather resistance, and absolute precision during onsite erection.

For international procurement teams and EPC contractors handling large-scale tenders, you need more than just standard steel. You need a manufacturing partner who understands the strict compliance required by national power authorities, the necessity of zero-error trial assemblies, and the logistics of delivering thousands of tons of steel across the globe without damage.

Core Technical Specifications and Material Standards

Maotong Power source all raw materials directly from top-tier state-owned steel mills in China to guarantee consistency. For 500kV Voltage Lattice Steel Tower, which are significantly taller and heavier than standard distribution poles, the selection of high-yield steel is non-negotiable.

Precision CNC Manufacturing Process

A 500kV tower can consist of thousands of individual angle steel pieces. If a single bolt hole is misaligned by a few millimeters, it causes massive delays and safety risks at the construction site. To eliminate this, our production facility utilizes fully automated CNC punching, drilling, and shearing lines. The data from the engineering shop drawings is fed directly into the CNC machines. This automated process ensures a hole position tolerance of less than 0.5mm. When your local erection crew starts bolting the tower together in the field, the pieces fit perfectly the first time. We also clearly stamp every single member with a permanent, easy-to-read part number that corresponds directly to the erection manual.

Customized Hot-Dip Galvanizing for Maximum Lifespan

Transmission towers are often installed in harsh environments—from humid coastal regions facing high salinity to arid deserts with severe temperature fluctuations. Our anti-corrosion treatment is handled entirely in-house. Every processed steel component undergoes comprehensive acid pickling to remove all mill scale and impurities before being submerged in our high-temperature zinc bath.

We strictly adhere to ISO 1461 and ASTM A123 galvanizing standards. For standard inland projects, we guarantee a minimum zinc coating thickness of 86μm. However, for projects located in highly corrosive environments, our technical team will adjust the dipping time and temperature to achieve a heavy-duty coating exceeding 100μm to 120μm, effectively extending the maintenance-free service life of the tower to well over 40 to 50 years.

Strict Quality Control and Full-Scale Trial Assembly

Quality assurance is embedded in every step of our workflow. We do not just ship cut steel; we ship verified structures. Before any mass production begins for a new 500kV Voltage Lattice Steel Tower design, our quality control department mandates a full-scale prototype trial assembly right in our factory yard.

Our technicians physically erect the complete tower to verify the structural geometry, check the precise alignment of all bolted connections, and ensure there is no structural stress or deformation. We document this entire process with detailed photographs and inspection reports, which are submitted to your management and technical teams for approval. We also welcome your appointed Third-Party Inspection (TPI) agencies to witness the mechanical testing, zinc thickness measurements, and trial erection in person.

Optimized Packaging and Container Logistics

We know that ocean freight and logistics make up a significant portion of your procurement budget. Handling oversized heavy steel requires expertise. We organize the finished tower members into logical, manageable bundles secured with heavy-duty steel wire and reinforced strapping. The bundles are sorted by tower type and member length to allow for rapid unloading and sorting at your project site.

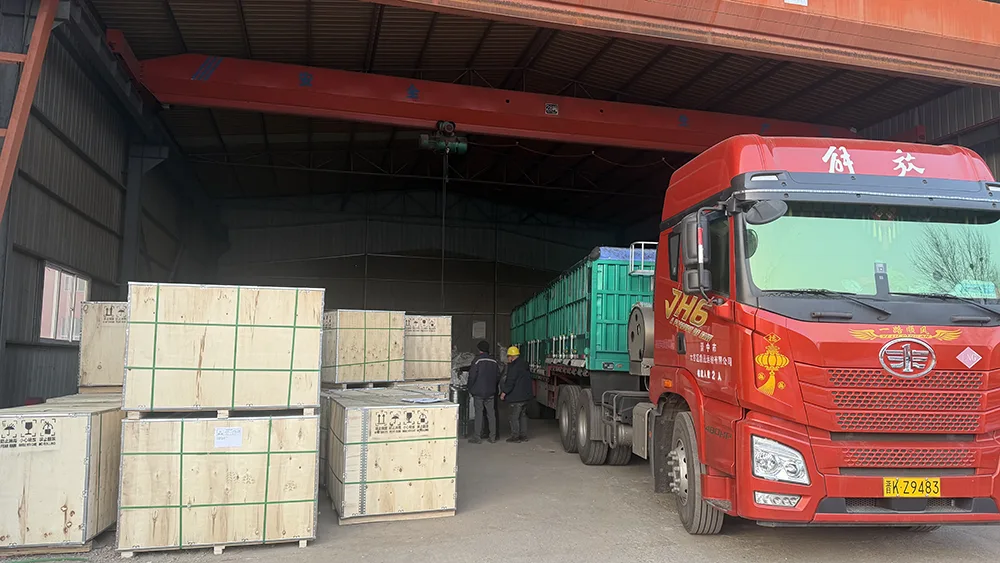

Our loading teams are experts at maximizing the payload within 40HQ and 20GP containers. We use specialized wooden dunnage and loading techniques to ensure the steel bundles do not shift during long ocean transits or train transports, protecting the galvanized surface from friction damage. Whether your cargo is heading to a remote site in the Middle East, South America, or navigating complex inland rail routes, our packaging is built to survive the journey intact.
