Do you know about communication towers?

Towers are categorized into angle steel towers, three-pipe towers, single-pipe towers, and more. All these towers can maintain an upright position independently. Generally, freestanding towers are assembled from steel pipes or angle steel, with heights ranging from over 20 meters to more than 100 meters.

Towers are categorized into angle steel towers, three-pipe towers, single-pipe towers, and more. All these towers can maintain an upright position independently. Generally, freestanding towers are assembled from steel pipes or angle steel, with heights ranging from over 20 meters to more than 100 meters.

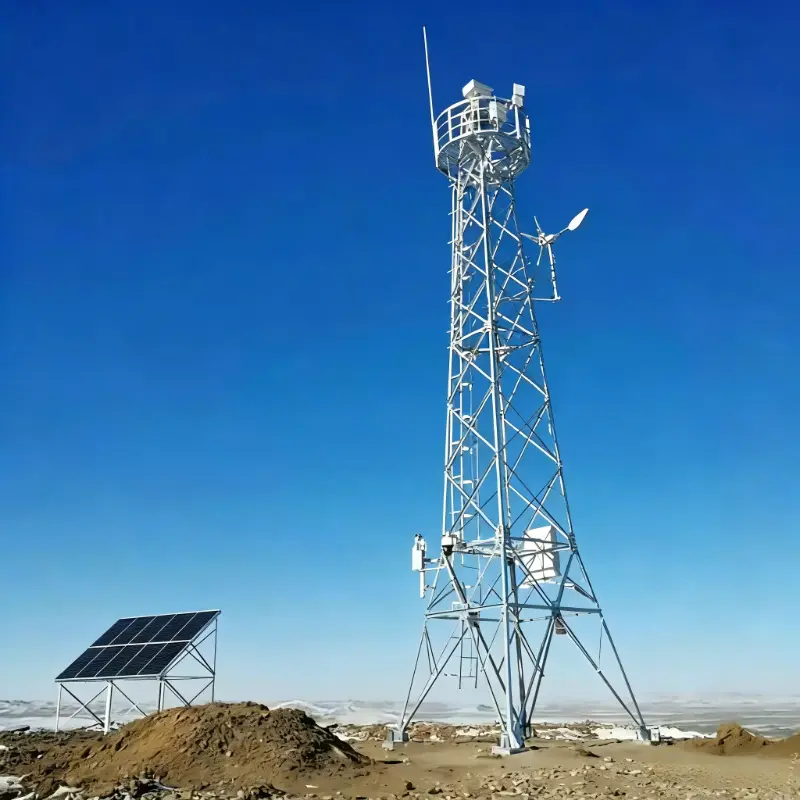

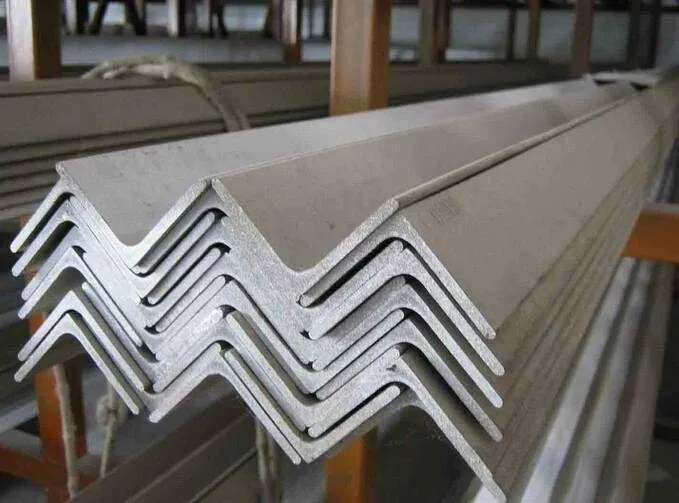

Angle Steel Tower

Assembled from angle steel and connected by bolts, angle steel towers feature convenient processing, transportation and installation. They boast high overall rigidity, strong load-bearing capacity and mature technical application.

Angle steel towers are mainly used in suburban areas, counties, towns, villages and other regions where aesthetic requirements are not a priority. These areas have a relatively small population, making them ideal for large-area coverage with high towers.

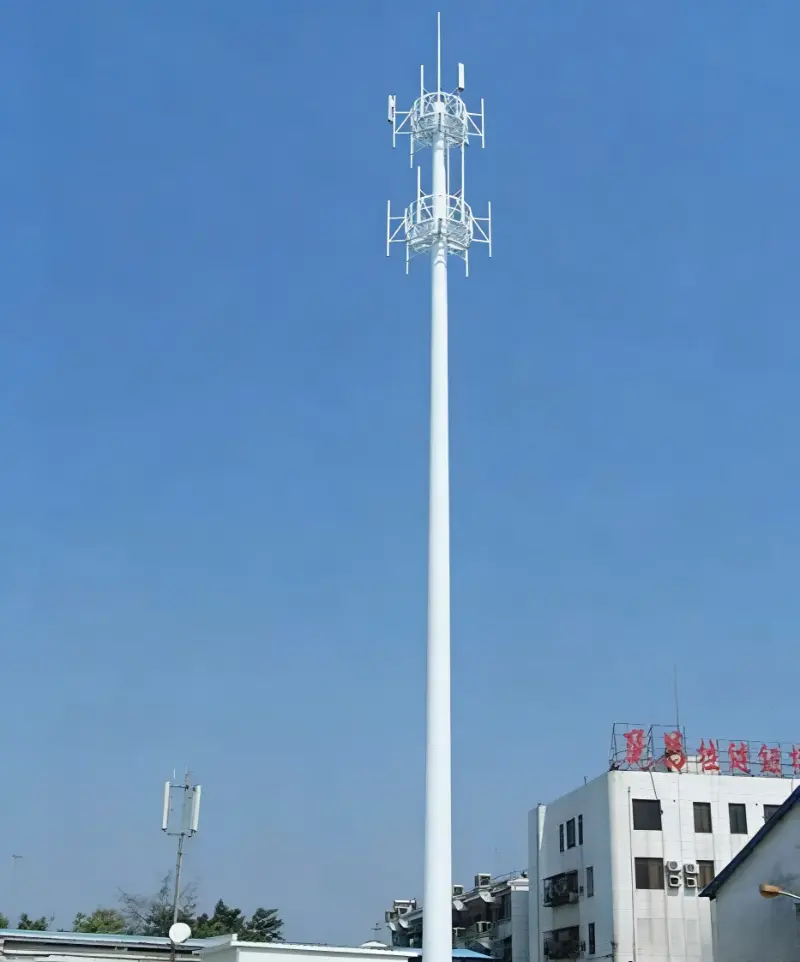

Single-Pipe Tower

Single-pipe towers have a sleek and attractive appearance, with a small footprint, fast construction speed, and are highly convenient for relocation and reuse. Thanks to these advantages, single-pipe towers have a wide range of applications. They can be installed in urban downtowns, residential communities, universities, commercial districts, scenic spots, industrial parks, railway lines and other areas.

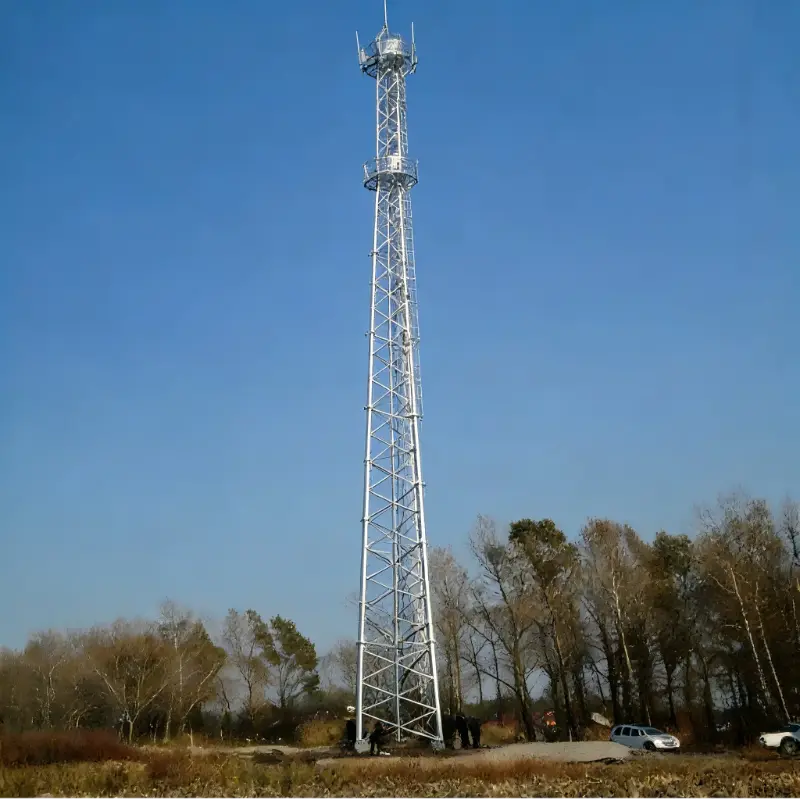

Three-Pipe Tower

The tower body of a three-pipe tower is made of steel pipes. Three main steel pipes are anchored into the ground as the framework, which is then reinforced with horizontal and diagonal steel components for stability.Compared with traditional angle steel towers, three-pipe towers have a triangular cross-section and a more slender structure. Therefore, they feature a simple design, fewer components, easy construction, a small footprint and thus lower costs.
