The relationship between the transmission tower and voltage

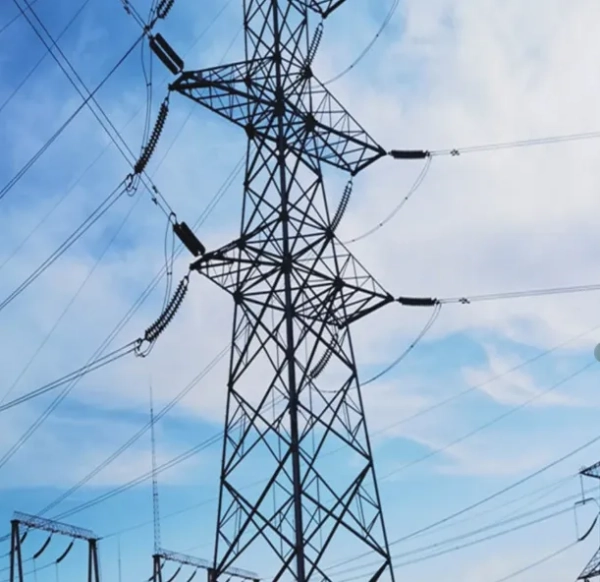

A Transmission Tower is a structure used to support high-voltage transmission lines. The power transmission and transformation system transmits electrical energy from power plants to substations through these high-voltage lines, and then distributes it to various users.

During this process, there is the following relationship between the iron tower and the power transmission and transformation voltage:

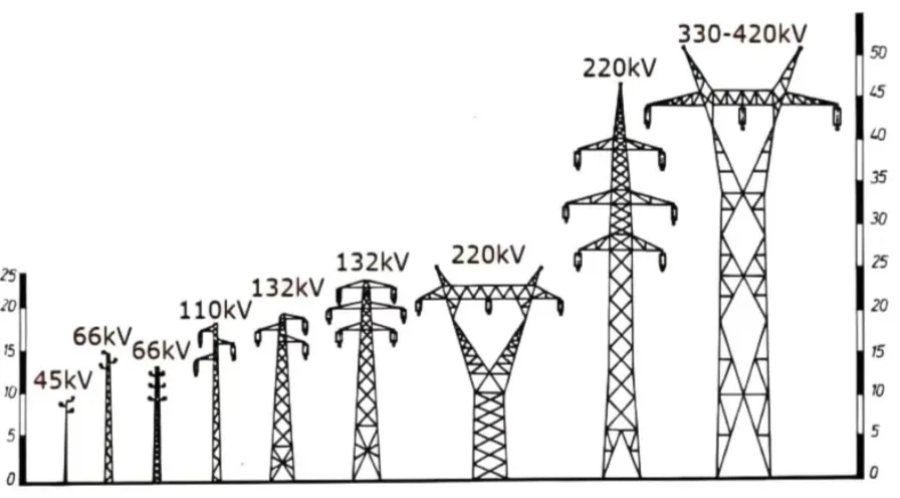

Voltage level: Transmission lines are classified according to their voltage levels, such as 35kV, 110kV, 220kV, 500kV and even higher ultra-high voltage (UHV) lines. The design and specifications of the iron tower are also determined according to these voltage levels. The higher the voltage, the greater the spacing and height between the towers are usually to avoid arc discharge and electromagnetic interference between the lines.

Insulation requirements: As the voltage level increases, the requirements for insulators on the tower also increase accordingly. High-voltage transmission lines require stronger insulators to prevent current leakage and arc discharge. The design of towers needs to take into account the installation and support of these insulators.

Mechanical strength: High-voltage transmission lines typically carry larger currents, which means thicker conductors are required. The iron tower must have sufficient mechanical strength to support these conductors and be capable of withstanding various external environmental factors, such as wind force, ice and snow loads, etc.

Tower type design: Transmission lines of different voltage levels require different types of towers. For instance, low-voltage transmission lines may employ relatively simple tower structures, while high-voltage transmission lines require complex multi-pole tower structures to offer higher stability and safety.

Safety distance: High-voltage transmission lines need to maintain a certain safety distance to prevent harm to the surrounding environment and personnel. The height and layout of the iron tower need to ensure that the safe distances between the conductors and the ground, buildings and vegetation comply with relevant regulations.

In conclusion, the relationship between iron towers and power transmission and transformation voltage is closely related. Different voltage levels directly affect the design, structure and safety requirements of iron towers.
